产品名称：
IP Multiviewer

上市日期： 2023-10-24

YUK6500 multi-screen monitoring system supports HD & SD mixed monitoring display and supports multiple audio and video formats mixed monitoring display such as MPEG2 MPEG4 H.264 H.265 AVS+ MPEGⅠ/Ⅱ/Ⅲ AC3 AAC DRA etc. It supports multi-screen video re-encoding and remote return monitoring. The device can be widely used in DVB, IP, OTT streaming media, security monitoring and other fields.

IP Multiviewer

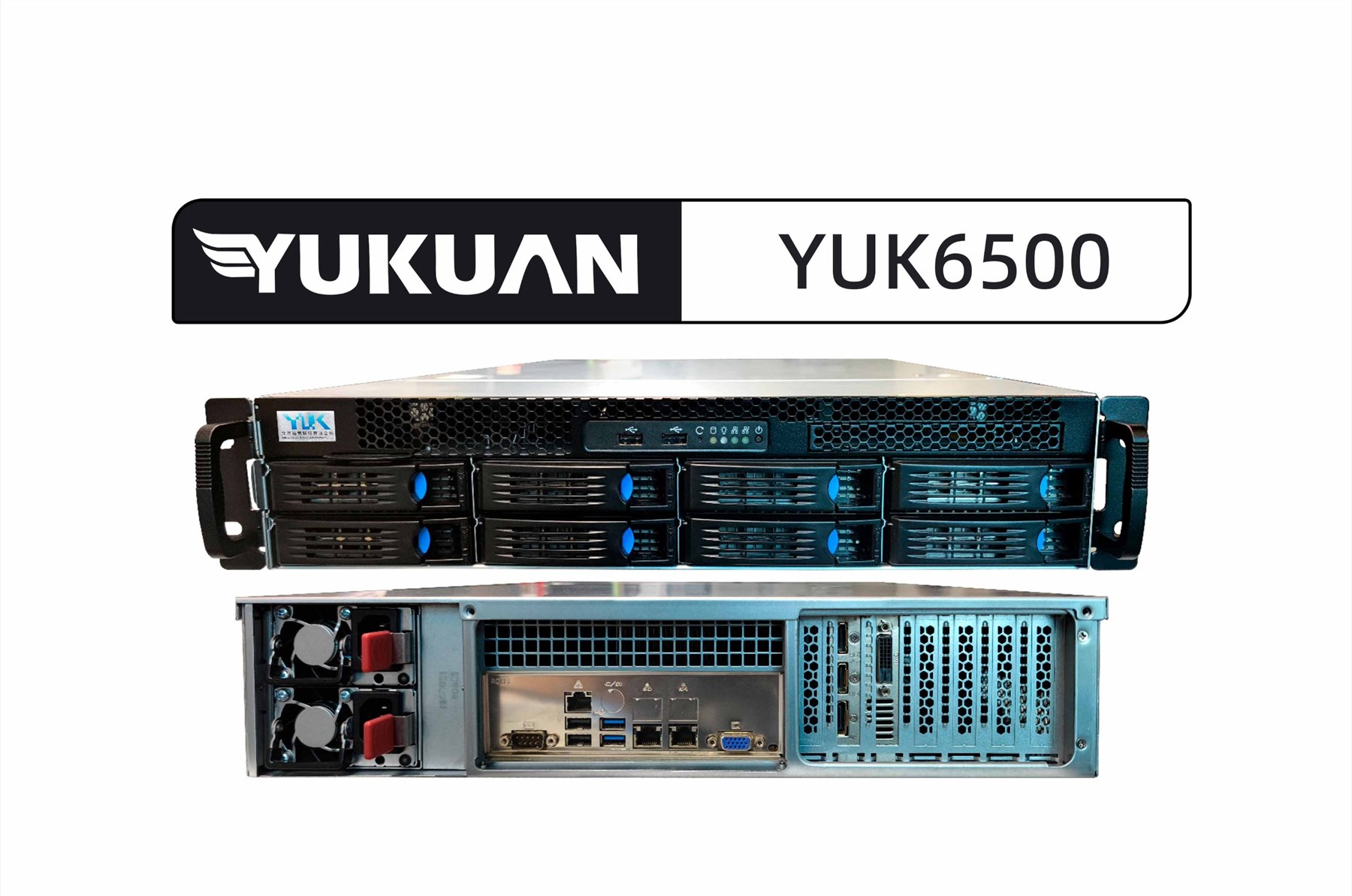

—— YUK6500 ——

YUK6500 IP Multiviewer-Yukuan Technology ltd

Overview

Product Features

Multi-screen Monitoring

l SPTS and MPTS supported

l 2 HDMI output, 50 SD or 16 HD H.264 programs displaying on dual-screen

l Multiple streaming media transmission protocols supported (UDP RTP HTTP RTSP RTMP HLS)

l Multiple streaming media encoding protocols supported (MPEG2 MPEG4 H.264 H.265 AVS+ MPEG-1/11/111 AC3 AAC)

l Detect freeze frame, black burst, color bars, video/audio loss, overflow and underflow of audio volume

l Alarm trigger setting supported

l Platform alarm supported

l Multiple alarm mode, OSD function included

l Audio monitor selection of sub-screen program, and zoom in on the full screen

l Multiple resolution mode, dual-screen/multi-screen/remote control supported (HTTP UDP)

l Colored UV meter display for stereo or 5.1 soundtrack

l Program polling display mode of sub-screen

l Clock (digital, analog), still picture, flash mixed display

l Custom display template function, rapid configuration

l Multiple network card load balance setting supported

l Software/hardware decoding supported

l Frame extraction and display supported

TS Transmission Monitoring

l ETSI TR-101 290 measurement supported

l Bandwidth utilization rate and bitrate check

l Measurement of PCR jitter and accuracy

l Monitoring and analysing base on PID

l Rebuilding and analysing of PSI/SI sheet

System Management

l Error log query

l Centralized management of NMS

l External interface control mode (SNMP, HTTP)

l Configuration import and export

l Chinese/English user interface supported

l Startup and remote control

Application

l Multi-screen monitoring of digital TV headend system

IP Multiviewer

l Multi-screen monitoring of signal transmission nodes in IPTV and OTT system

IP Multiviewer

l Multi-node multi-picture synthesis real-time return monitoring

IP Multiviewer
