Multi Channel 3G-SDI to Fiber

上市日期： 2019-07-01

YUK100-HD series fiber optic extender can transmit 1 to 8 channel unidirectional or 1 to 4 channel bidirectional 3G-SDI signal over 1-core single model or multi-mode fiber, downward compatible with HD-SDI,SD-SDI and ASI signal. It provides reliable high quality transmission up to 100KM (single mode fiber) and 0.5KM (multi-mode fiber). Digital transmission meet the requirement of high quality image transmission and can achieve the broadcast transmission level, full real-time transmission and non time delay.

Multi Channel 3G-SDI to Fiber Converter

—— YUK100-HD Series ——

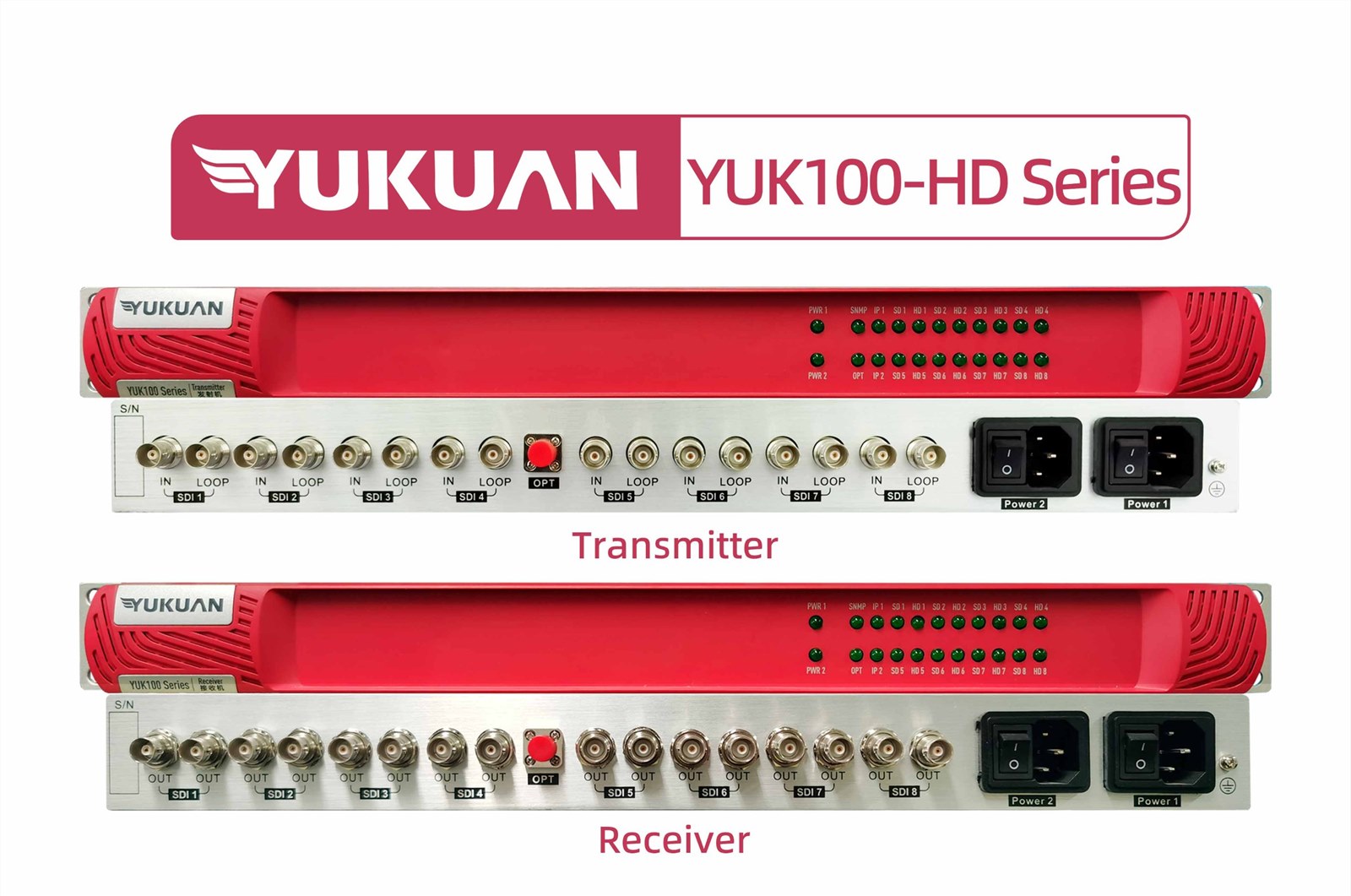

1-ch to 8-ch 3G-SDI to Fiber Converter

Transmitter

1-ch to 8-ch 3G-SDI to Fiber Converter

Receiver

Overview

Product Features

l Bi-directional or uni-directional transmission of independent 3G-SDI signals or TS stream signals based on DVB-ASI interface in the same 1-core fiber

l Compatible with HD-SDI, SD-SDI and DVB-ASI, adaptive signals HD-SDI, SD-SDI, ASI

l Each input channel has loop-out, and each output chanel has two outputs

l The unique frame structure is used to ensure that the multi channel signals are in one-to-one correspondence between the sending and receiving ends

l Supports uniform mode MTS and burst mode MTS signals

l Large signal capacity, the maximum data rate of each SDI channel can reach 2.5Gbps

l Complete physical layer multiplexing and high-precision PCR correction, the average PCR jitter is maintained at 30 ~ 60ns

l Digital transmission meets the requirements of high-quality image transmission and can reach broadcast-level transmission quality

l The optical receiver has high receiving sensitivity (-30dBm) to ensure long-distance transmission of signals without repeaters

l Transmission distance 0-100km (according to actual needs)

l High definition TV signal format: HDI 143,177,270,360,540,1485,2500Mbps

l Comply with SMPTE259M,SMPTE297M,SMPTE310,SMPTE305(HDTI),SMPTE344, SMPTE292M, SMPTE424M

l SDI input has cable equalization and can compensate the loss of cable transmission

l Support pathological signal

l Redundant two power supplies

Specification

Video Input

Input: 1 to 8 channel unidirectional or 1 to 4 channel bidirectional 3G/HD-SDI ASI,each channel has loop out

Input level: >380mVP-P

Input automatic cable equalization: >100m(1485Mbps)(BELDEN8281 cable), >250m(270Mbps)(BELDEN8281 cable)

Input reflection loss: >16dB@270Mbps, >15dB@1485Mbps, >10dB@2970Mbps

Input resolution: 1080P(1920x1080)@25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz

1080I(1920x1080)@25Hz, 29.97Hz, 720P(1280x720)@50Hz , 59.94Hz

576I(720x576)@25Hz, 480I(720x480)@29.97Hz

Impedance: 75Ω

Connector: BNC

Video Output

Output: 2 to 16 channel unidirectional or 2 to 8 channel bidirectional 3G/HD-SDI,ASI, each channel has two outputs

Output level: 800mVP-P±10%

Rise/fall time: < 135ps(HD/3G), < 800ps(SD)

Maximum jitter: < 0.1UI@270 Mbps < 0.2UI@1485 Mbps < 0.3UI@2.97Gb/s

Impedance: 75Ω

Connector: BNC

Optic and Physical Characteristics

Wavelength: from 1310nm to 1610nm

TX power/RX sensitivity: -5dBm~0dBm/-30dBm~-12dBm

Transmission distance: 0~100KM(Actual distance is determined by customer’s requirement)

Optical connector: FC LC ST SC are available

Power supply: AC 220V,<20W

Temperature range: -30°C~+70°C(operation), -20°C~+80°C(storage)

Dimension: 19 inch 1U rack, 485×320×44mm
