DVB-S/S2 4K IRD

发布时间 2025-06-09

点击次数 3

产品名称：
DVB-S/S2 4K IRD

上市日期： 2025-06-09

YUK2300-4K integrated receiver and decoder supports H.265 H.264 MPEG-2 AVS+ AVS2 video decoding. It supports RF ASI IP input, 1xHDMI/1x12G-SDI/4x3G-SDI/1xanalog stereo/1xAES/EBU output, it supports 2160P/1080P/ 1080I/720P/576I/480I multiple resolutions and supports DRA/AC3/EAC3/AAC/MPEG-1 and other audios.

It supports two CAM cards to descramble different signals and support BISS-1 and BISS-E decryption.

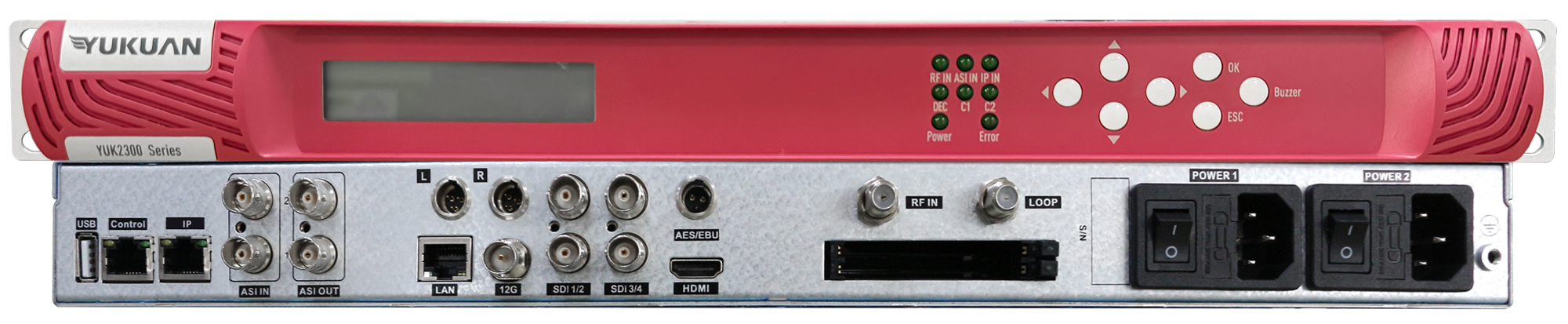

DVB-S/S2 4K Integrated Receiver Decoder

—— YUK2300-4K ——

DVB-S/S2 4K IRD

Overview

It supports two CAM cards to descramble different signals and support BISS-1 and BISS-E decryption.

Product Features

l Support multiple input RF IP ASI

l RF input: DVB-S/S2, DVB-S2X(optional)

l Multiple output: 1xHDMI/1x12G-SDI/4x3G-SDI/1xanalog stereo/1xAES/EBU/ASI/IP

l Support H.265 H.264 MPEG-2 AVS+ AVS2 decoding

l Support DRA AAC MPEG EAC3 AC3 passthrough

l Demodulator + descrambler +re-mux+ decoder in one device

l IP (4×MPTS & 64×SPTS) output over UDP and RTP, support unicast multicast

l Support SRT RTMP RTSP HTTP HLS(M3U8) IP protocol input

l 2 ASI input, 2 ASI independent output

l Two independent CAM cards, descrambling two different signals with multi programs

l CI descrambling supports NDS, Irdeto and other conditional access systems. Adopt unique digital decoding technology and dual PCMCIA interface, receive various encrypted satellite cable terrestrial digital TV signals by replacing different PCMCIA modules.

l Support BISS-1, BISS-E decryption, support T2-MI de-encapsulation

l Compatible with HD SD signals

l Support SDR/HDR10/HLG

l Sampling rate support 4:2:2 and 4:2:0

Specification

RF Input(DVB-S/S2)
Input	Input Frequency
1×RF input, 1×RF loop, 75Ω	950~2150MHz

Standard	Half SyQuest Baseband filler(Roll off factor)
DVB-S compliant	0.35 for DVB-S
DVB-S2 compliant	0.15 to 0.35 for DVB-S2
VCM and ACM supported

LNB Power Supply	FEC
13V/18V/turn off, 22KHz	ll ratios compatible with standards

Supported Code Rate	Maximum Symbol Rate(DVB-S)
DVB-S:	Symbol rates: 1-54MSps
QPSK: 1/2, 2/3, 3/4, 4/5, 5/6, 7/8	Maximum Symbol Rate (DVB-S2/S2X)
DVB-S2:	Normal(64800 bits) FECFRAME Symbol Rates:
QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6	QPSK 1-60MSps
8/9, 9/10	8PSK 1-60MSps
8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10	16APSK 1-58MSps
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10	32APSK 1-55MSps
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

ASI Input/Output	TS Over IP
ASI input connector: 2×BNC, 75Ω	Connector:1×RJ45, 10/100/1000 Base-T
ASI output connector: 2×BNC , 75Ω	Effective bitrate: 600Mb/s
Executive standard: DVB-ASI, EN50083-9	Frame length: (1-7)×188 adjustable bytes
Output bitrate ≤100Mb/s	Transfer protocol: UDP/RTP, support unicast multicast
	SRT RTMP RTSP HTTP HLS(M3U8)

Video Decoding	Audio Decoding
Video decoding format: H.265 HEVC/MPEG4 AVC/	Audio decoding format: MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC,
H.264 AVC/MPEG-2/AVS+/AVS2	MPEG-4 AAC LC 2-CHANNEL/5.1 CHANNEL AC3/DRA/EAC3
Bitrate control: VBR CBR optional	Bitrate: 64/128/256/384Kbps
	Sampling Frequency: 48/44.1/32KHz
	Support volume adjustment
	Support SDI embedded audio

12G/3G/HD/SD-SDI Output	HDMI Output
Connector:	Connector:1xHDMI 1.4/2.0 HDMI type A
12G-SDI: 1xBNC	Audio: 1-ch analog stereo L & R audio (2x small XLR),
3G-SDI: 4xBNC	1-ch AES/EBU(1x small XLR)
HD-SDI output: SMPTE 292M, 1.485 Gbit/s (20bit)	Resolution:2160p25/p30/p50/p60/1080p25/p30/p50/
Output level: 800mV+-20 p-p	p59.94/i50/i59.94/720p50/p59.94/576I/480I
Resolution:2160p25/p30/p50/p60/1080p25/p30/p50/p59.94/i50/i59.94/720p50/p59.94/576I/480I

Audio Output	Local and Remote Management
Connector: 1-ch analog stereo audio and 1-ch AES/EBU	Connector: 1×RJ45, 1000 Base-T
Audio output mode: Left, Right, Dual Mono, Stereo	Remote control: HTTP Web
	Local control: HTTP Web
	Equipment upgrade: IP

Physical Specifications
Dimension(L×W×H): 610mmx530mmx150mm, 19’’ 1U rack
Weight: net weight 8.0KG
Power: AC 90V～250V, 50/60Hz
Power consumption: 24W (excluding LNB power supply)
Temperature range: 0 ~ 45°C(operation), -10 ~ 60°C(storage)
Humidity: 10 ~ 90% (non-condensing)
